H30
Category：H series
Release date：2020-03-02 15:03:12
Order

  • Parameters

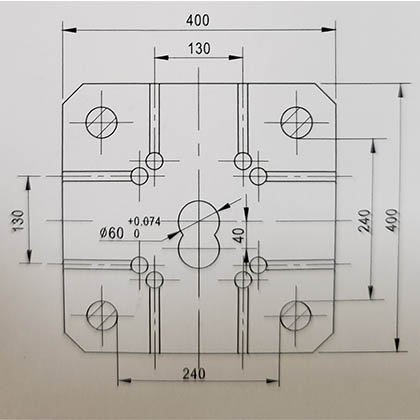

  • Drawing
  • Details
Clamping Force KN 300
Open stroke mm 200
Space between Tie-bar mm 240*240
Die-thickness（Min-Max） mm 120-320
Injection Force KN 30
Injection stroke mm 110
Injection position mm 0-40
Ejector force KN 35
Ejector stroke mm 50
Sleeve diameter mm 45
Pump pressure Mpa 7
Motor power KW 7.5
Injection weight Kg 0.6
Pot capacity Kg 160
Tank capacity L 250
Machine weight Kg 2900
Dimension of machine mm 3407*1273*2542
