H90
Category：H series
Release date：2020-03-02 16:03:47
Order

  • Parameters

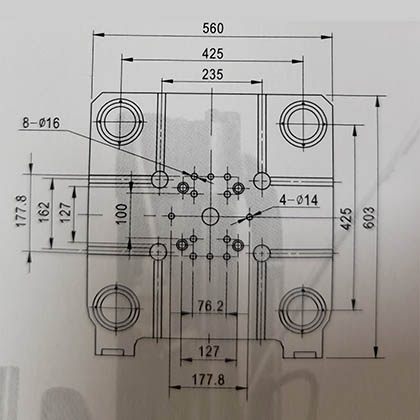

  • Drawing
  • Details
Clamping Force KN 900
Open stroke mm 270
Space between Tie-bar mm 360*360
Die-thickness（Min-Max） mm 120-360
Injection Force KN 75
Injection stroke mm 130
Injection position mm 0-60
Ejector force KN 60
Ejector stroke mm 60
Sleeve diameter mm 60
Pump pressure Mpa 12
Motor power KW 11
Injection weight Kg 1.6
Pot capacity Kg 350
Tank capacity L 250
Machine weight Kg 4700
Dimension of machine mm 4300*1800*2250
