H50
Category：H series
Release date：2020-03-02 15:03:05
Order

  • Parameters

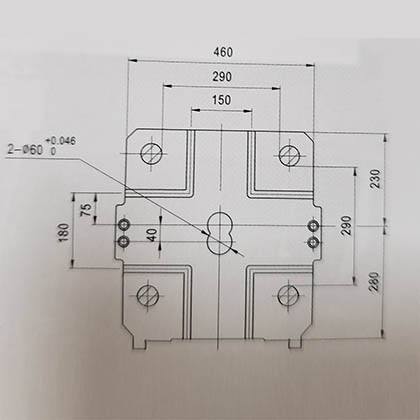

  • Drawing
  • Details
Clamping Force KN 500
Open stroke mm 210
Space between Tie-bar mm 290*290
Die-thickness（Min-Max） mm 120-320
Injection Force KN 50
Injection stroke mm 110
Injection position mm 0-40
Ejector force KN 50
Ejector stroke mm 50
Sleeve diameter mm 50
Pump pressure Mpa 10.5
Motor power KW 9.5
Injection weight Kg 1.1
Pot capacity Kg 160
Tank capacity L 320
Machine weight Kg 3500
Dimension of machine mm 3500*1450*2100
