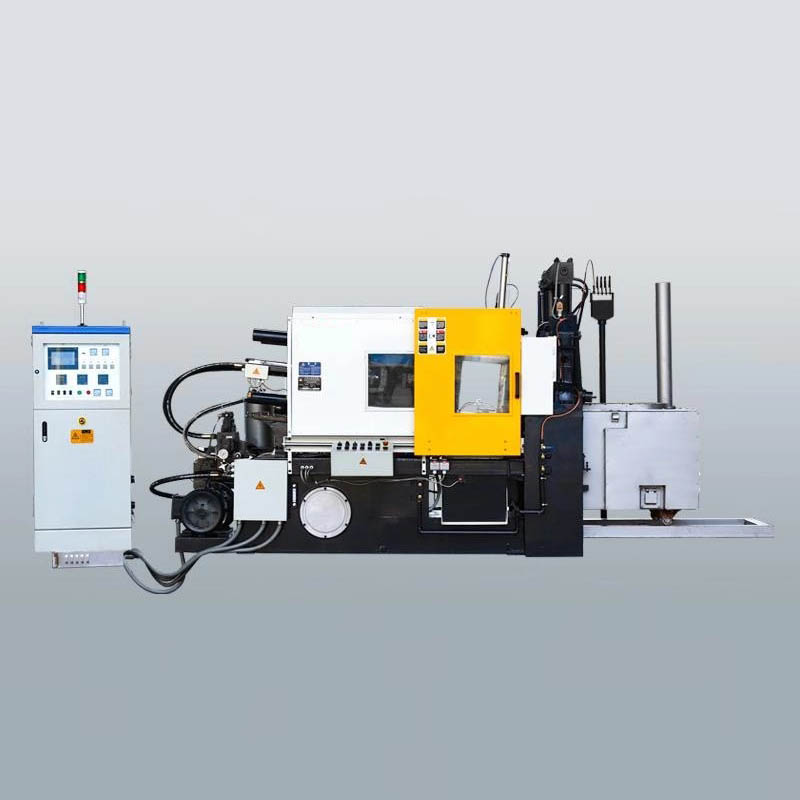

H130
Category：H series
Release date：2020-03-02 16:03:39
Order

  • Parameters

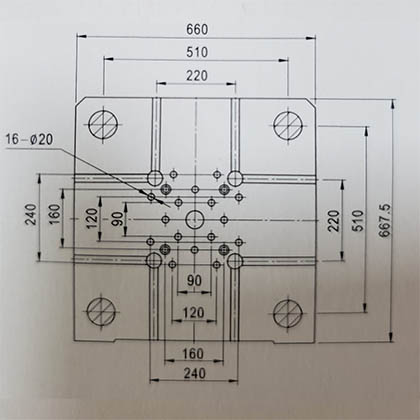

  • Drawing
  • Details
Clamping Force KN 1300
Open stroke mm 350
Space between Tie-bar mm 430*430
Die-thickness（Min-Max） mm 250-500
Injection Force KN 100
Injection stroke mm 148
Injection position mm 0-80
Ejector force KN 90
Ejector stroke mm 85
Sleeve diameter mm 60
Pump pressure Mpa 12
Motor power KW 11
Injection weight Kg 2.5
Pot capacity Kg 350
Tank capacity L 450
Machine weight Kg 5500
Dimension of machine mm 5200*1600*2300
