国际标准型号 |
INTERNATIONAL CLASS NO. |
|
|
|
规格 |
SPECIFICATION |
|

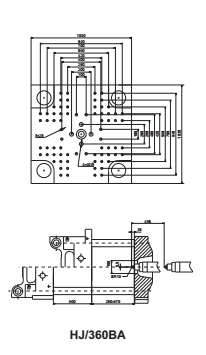

HJ/360BA |
|
螺杆型式 |
Screw type |
|
A |
B |
|
注射装置 |
Injection Unit |
|
|
螺杆直径 |
Screw diameter |
mm |
55 |
60 |
|
螺杆长径比 |
Screw L/D ratio |
L/D |
27 |
24.8 |
|
理论注射容量 |
Shot volume (theoretical) |
CM³ |
593 |
706 |
|
注射重量(ps) |
Injection weight (PS) |
g |
540 |
642 |
|
注射速度 |
Injection speed |
mm/s |
400 |
400 |
|
注射速率 |
Injection rate |
g/s |
865 |
1029 |
|
注射压力 |
Injection pressure |
Mpa |
148 |
124 |
|
螺杆转速 |
Screw speed |
rpm |
0-350 |
|
合模装置 |
Clamping Unit |
|
|
合模力 |
Clamping force |
KN |
3600 |
|
移模行程 |
Open stroke |
mm |
600 |
|
拉杆内间距(宽×高) |
Space between tie-bars(W*H) |
mm |
635x615 |
|
最大模厚 |
Max. mould height |
mm |
670 |
|
最小模厚 |
Min. mould height |
mm |
250 |
|
顶出行程 |
Ejector stroke |
mm |
100 |
|
顶出力 |
Ejector force |
KN |
70 |
|
其它 |
Others |
|
|
最大油泵压力 |
Pump max. pressure |
Mpa |
17.5 |
|
电机功率(伺服) |
Pump motor power (servo) |
KW |
40+40 |
|
电热功率 |
Heating power |
KW |
23 |
|
加热段数 |
Numbers of heating area |
Segment |
3+1 |
|
外形尺寸(长×宽×高) |
Machine dimension (L*W*H) |
M |
7.8x1.95x2.45 |
|
油箱容积 |
Oiltank cubage |
L |
850 |
|
机器重量 |
Machine weight |
TON |
14.2 |
|

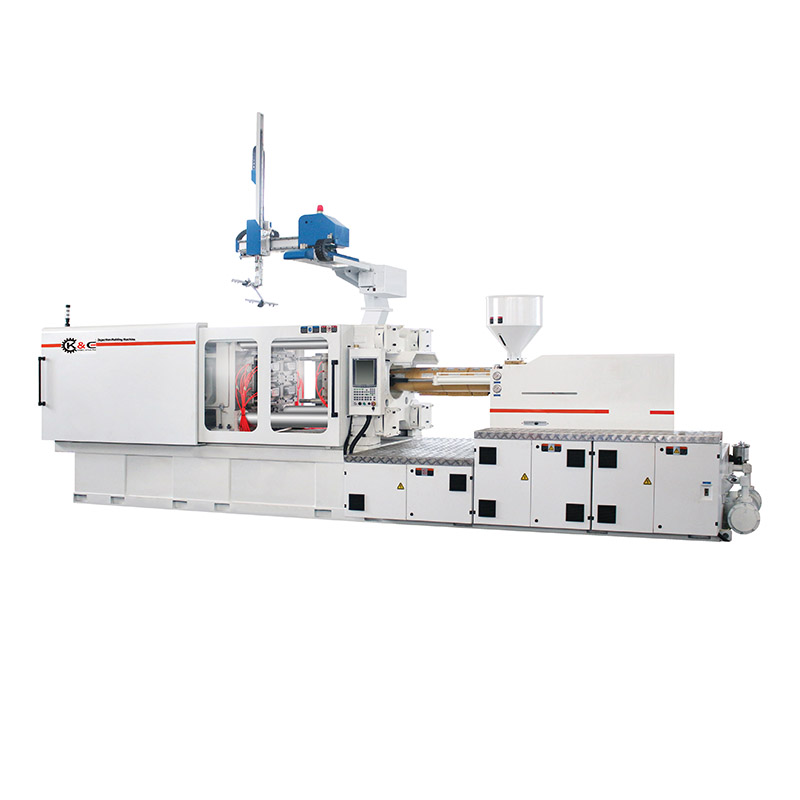

U&H series main features:
● Clamping structure/unit as well as machine body is with high rigidity & high load capacity design, which can ensure machine’s stability and durability
● Suitable hydraulic system design matches with high response controller, which guarantees the machine with shorter cycle time and achieve high speed /precision function requirement
● We have adopted oil self-lubricating bushings and good quality steel rod as well as long lifespan design and manufacture of clamping pins for the machine
● Coaxial and high agility single cylinder fast injection structure has greatly improved the plastics melting capacity & plasticizing performance
● The machine is suitable for the processing of thin-wall packing and long flow path products, so as to make sure the production efficiency accordingly |
|
